The Wireless Solution

Would our RF (Radio Frequency) Energy Harvesting Solutions be right for you?

Let’s assume that you work with battery powered IoT wireless devices that operate within wireless waves rich environments. Without energy harvesting, you need to replace the batteries of those devices, because they run out of energy. This generates operational costs.

But there might be enough of energy provided by the wireless emitters surrounding your devices that you could use to power them.
Those emitters include:

- GSM900 (BTx)925-960 MHz
- GSM1800 (BTx)1805-1880 MHz
- 3G (BTx)2110-2170 MHz
- WiFi2400-2500 MHz


And if not, you can equip the environment with dedicated emitters emitting power at 868MHz (Europe) or 915MHz (USA).

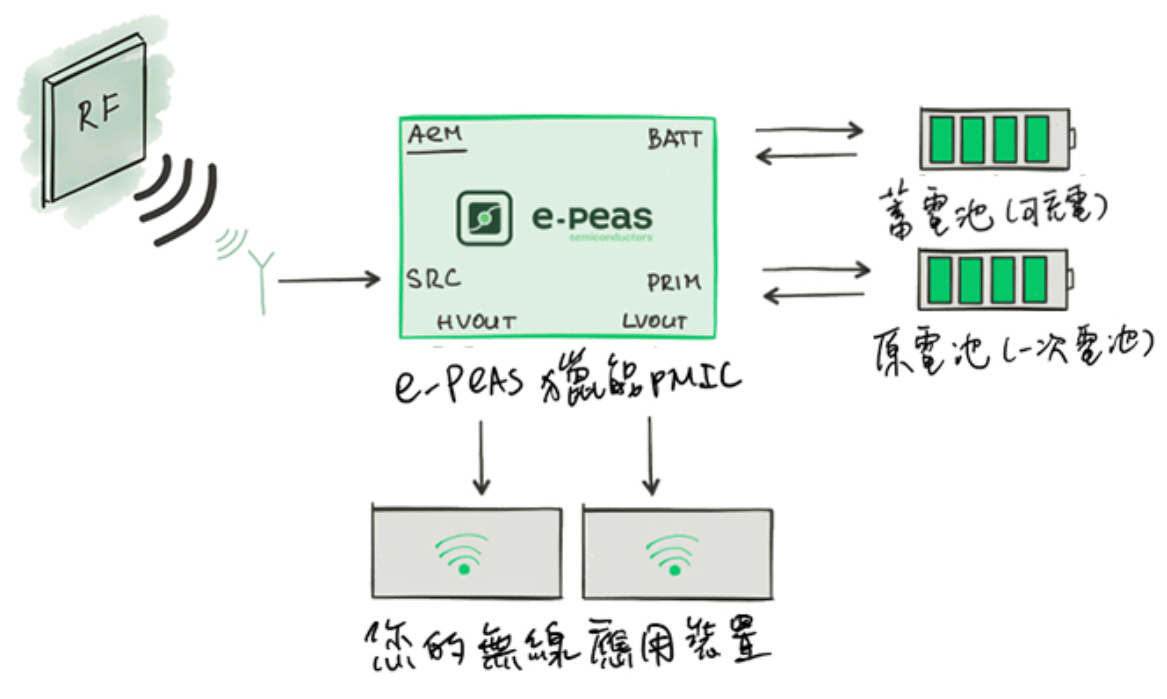

When properly selected and sized (frequency compatibility with available sources), an antenna and a balun (provided by e-peas for all above mentioned frequency ranges) combined with our state of the art energy harvesting PMICs will recharge the batteries of your IoT applications from ambient RF power.

Using e-peas’ RF energy harvesting, you will avoid typical operating costs associated with battery replacement.

What exactly does e-peas offer?

Best performing solutions that make your devices’ batteries live forever. Our innovative ICs autonomously and efficiently recharge your batteries from received RF power levels as low as -19dBm.

e-peas offers you 2 AEM [Ambient Energy Manager] references:

  • The AEM30940 allows you for harvesting energy from -18dBm up to 10dBm using properly selected external antenna, balun and rectifier
  • The AEM40940 integrates an RF rectifier and allows you for harvesting energy from -19dBM up to 5dBm using a properly selected external antenna and balun.

Why e-peas? How does e-peas differ from competitors?

This reference is based on e-peas unique AEM platform offering:

  • top energy conversion efficiency
  • the fastest supercapacitor charge
  • the lowest cold-start power
  • the smallest footprint and associated components BOM

In addition, you will get direct access to engineering support by our designers.

Product Matrix

The following product(s) is/are recommended for RF applications:

Part NumberVinCold-startPinPoutMPPTPackage
AEM3094050mV to 5V-18.5dBm-18.5dBm to
10dBm
20mA@1.8V
80mA@1.8-4.1V
YesQFN28
5x5mm
AEM4094050mV to 2.5V-19.5dBm-19.5dBm to
10dBm
20mA@1.8V
80mA@1.8-3.3V
YesQFN28
5x5mm

Use Cases

Electronic Shelf Label (ESL)

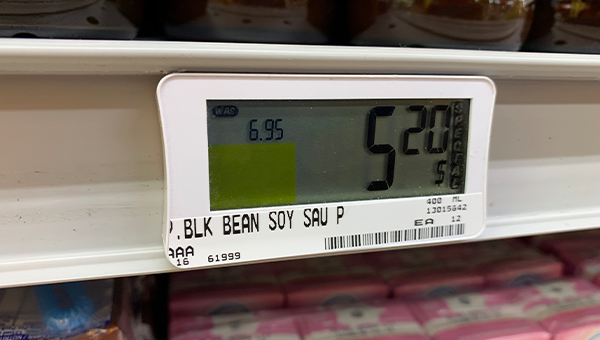

Electronic Shelf Label, or ESL, is a label comprised of electronic paper-like display panel, wireless communication module and energy storage element. ESL can dynamically display the name of products, their prices or relevant QR codes or barcodes where shoppers can use their smart phones to scan to acquire more information. Primary applications of ESL now includes retail malls, supermarkets, convenience stores, drugstores, etc. Each label can replace traditional paper based price tags and be connected onto a server or the cloud, and timely updates its prices to reflect real-time price or sales information. ESL can effectively reduce labor and material costs and increase not only management efficiency but its brand image and consumer interactions.

In addition to retail applications, such electronic paper display can also be used in other scenarios, such as hospital, outdoor transportation spots, etc. Patient information tags or Bus arrival time updates are all perfect examples of where such labels can be used for smart health or smart city applications.

E-peas Solutions

E-peas is compatible with RF energy harvesting solutions, where an IoT ESL device can be remotely supplied with power at a distance, permitting users a more agile and flexible approach to design its applications. For more details on how to utilise e-epas RF energy harvesting solutions, visit the “AEM30940 for RF Harvesting” and “AEM40940 for RF Harvesting” sections below. In summer 2019, e-peas further announced major cooperation with leading RF technology heavyweights to jointly develop “wirelessly powered electronic paper display solutions.” Visit here to learn more.


AEM30940 for RF Harvesting

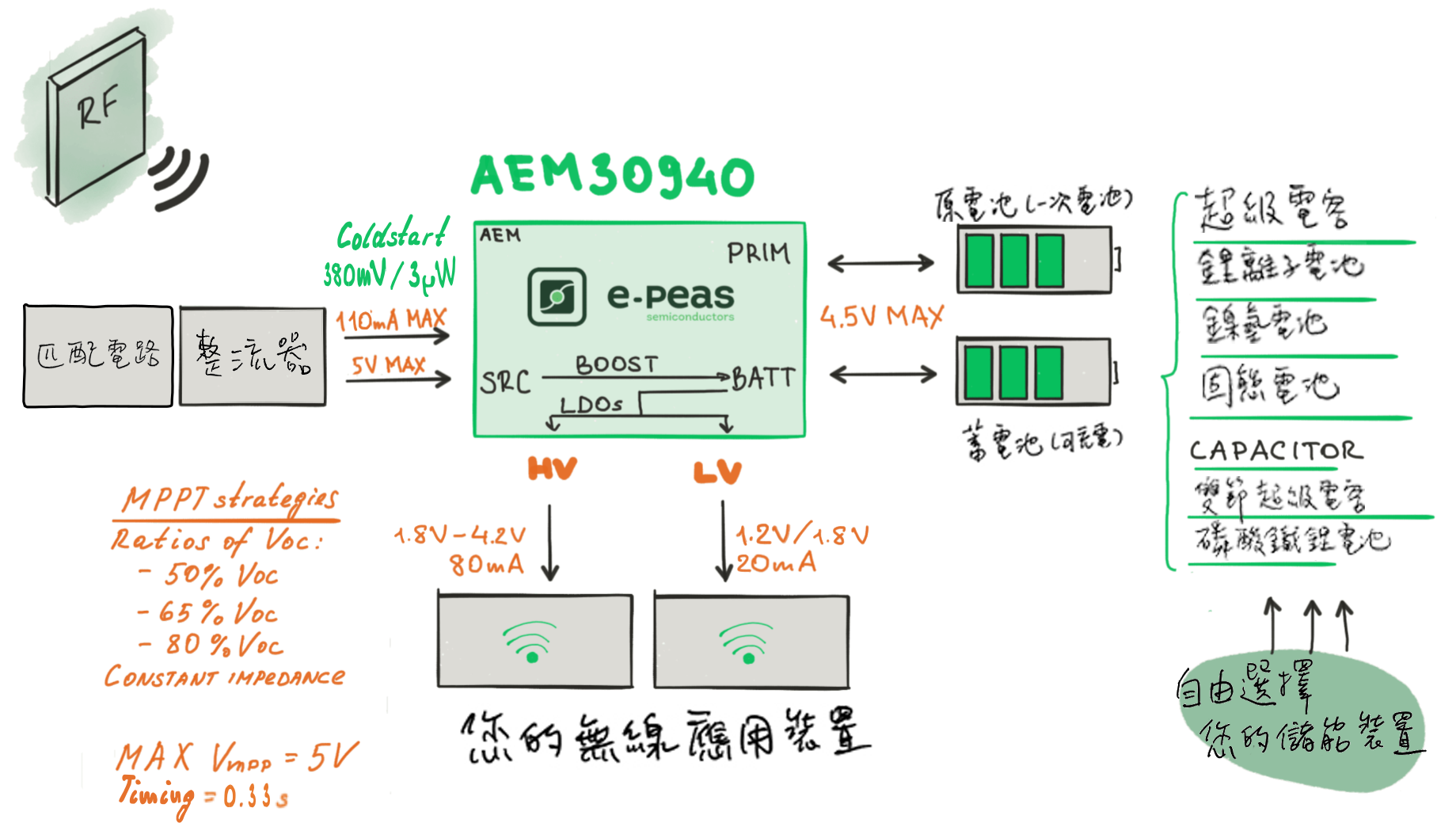

E-peas’ RF energy harvesting IC solution – AEM30940 – is an integrated energy management subsystem that extracts DC power from ambient RF waves to simultaneously store energy in a rechargeable element and supply the system with two independent regulated voltages. This allows product designers and engineers to extend battery lifetime and ultimately get rid of the primary energy storage element in a large range of wireless applications like industrial monitoring, home automation, wearables.


Ultra-low-power start-up

  • Cold start from 380 mV input voltage and 3 µW input power (typical)
  • RF input power from -18.5dBm up to 10dBm (typical)

Ultra-low-power Boost regulator

  • Open circuit voltage sensing for MPPT every 0.33 s
  • Configurable MPPT with 2-pins programming
  • Selectable Voc ratios of 50, 65 or 80 %
  • Input voltage operation range from 50 mV to 5V
  • MPPT voltage operation range from 50 mV to 5V
  • Constant impedance Matching (ZMPPT)

Integrated 1.2/1.8 V LDO regulator

  • Up to 20 mA load current
  • Selectable output voltage
  • Power gated by external control

Integrated 1.8 V-4.1 V LDO regulator

  • Selectable or adjustable output voltage
  • Up to 80 mA load current with 300 mV drop-out
  • Power gated by external control

Flexible energy storage management

  • Selectable or adjustable output voltage
  • For any type of rechargeable battery or (super)capacitor
  • Fast supercapacitor charging
  • Warns load when battery is getting empty
  • Warns when regulators are switched on

Smallest footprint, smallest BOM

  • Only seven passive external components

Optional primary battery

  • Automatically switches to the primary battery when secondary battery gets empty

Integrated balun for dual-cell supercapacitor


Documentation

ItemVersionLast UpdateDownload
AEM30940 product briefPB_AEM30940_REV1.317/05/2018Download
AEM30940 datasheetDS_AEM30940_REV1.101/10/2018Download

AEM40940 for RF Harvesting

E-peas’ RF energy harvesting IC solution – AEM40940 – is the next generation integrated energy management subsystem integrating a rectifier that extracts AC power from ambient RF waves to simultaneously store energy in a rechargeable element and supply the system with two independent regulated voltages. This allows product designers and engineers to extend battery lifetime and ultimately get rid of the primary energy storage element in a large range of wireless applications like industrial monitoring, home automation, wearables.


Ultra-low-power start-up

  • RF input power from -19.5dBm up to 10dBm (typical)
  • Cold start from the RF input or from the storage device

Ultra-low-power Boost regulator

  • Open circuit voltage sensing for MPPT every 0.33 s
  • Configurable MPPT with 2-pins programming
  • Selectable Voc ratios of 60, 65 or 70 %
  • Input voltage operation range from 50 mV to 5V
  • MPPT voltage operation range from 50 mV to 5V
  • Constant impedance Matching (ZMPPT)

Integrated 1.2/1.8 V LDO regulator

  • Up to 20 mA load current
  • Power gated dynamically by external control
  • Selectable output voltage

Integrated 1.8 V-3.3 V LDO regulator

  • Up to 80 mA load current with 300 mV drop-out
  • Power gated dynamically by external control
  • Selectable or adjustable output voltage

Flexible energy storage management

  • Selectable overcharge and overdischarge protection
  • For any type of rechargeable battery or (super)capacitor
  • Fast supercapacitor charging
  • Warns the load when battery is running low
  • Warns when output voltage regulators are available

Smallest footprint, smallest BOM

  • Only seven passive external components

Optional primary battery

  • Automatically switches to the primary battery when secondary battery gets empty

Integrated balun for dual-cell supercapacitor

Documentation

ItemVersionLast UpdateDownload
AEM40940 product briefPB_AEM40940_REV1.417/05/2018Download
AEM40940 datasheetDS_AEM40940_REV1.125/09/2018Download
AEM40940 user guideUG_AEM40940_REV1.025/09/2018Download
